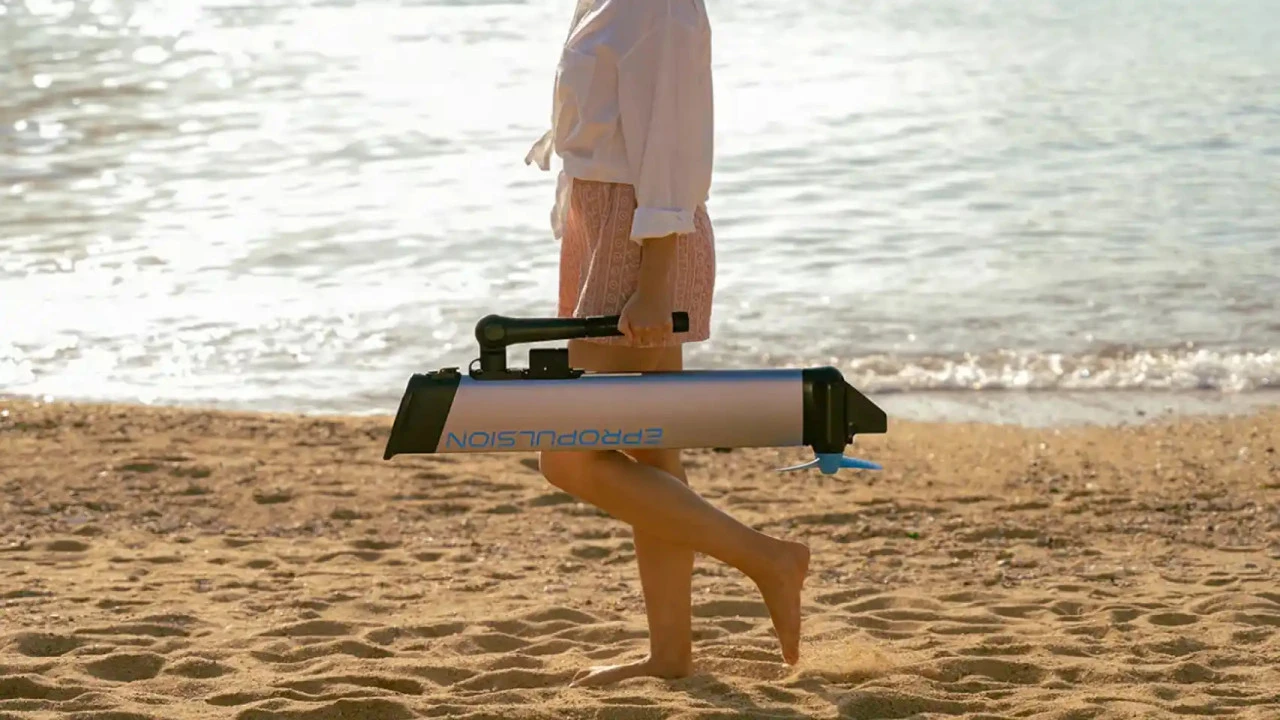

eLite Electric Outboard Motor Kit Description
The ePropulsion Elite Outboard represents a leap forward in boating technology, offering a blend of power, efficiency, and environmental responsibility. With its zero-emission operation and whisper-quiet performance, it sets a new standard for environmentally conscious boating. The Elite’s lightweight design and easy installation make it an ideal choice for boaters seeking a sustainable and powerful alternative to traditional gas-powered motors. Its innovative features ensure a seamless and enjoyable boating experience, making it a premier choice for eco-friendly marine adventures.
Performance and Range*
|
Half Power |
Full Power 500W |
Sport Mode 750W |
|
|
Speed |
6.0 / 3.7 | 7.5 / 4.7 | 8.3 / 5.2 |
| Max Run Time (hh:mm) |
01:30 | 00:45 | ** |
| Range (km / miles) |
9.0 / 5.6 | 5.6 / 3.5 |
* The data above is for a single person driving an 8ft aluminium dinghy (total weight 17 kg) in calm conditions. Range and run time will vary with different boat or load, wind and waves, etc.
** Sport Mode can last up to 1 minute, subject to battery SOC and temperature.

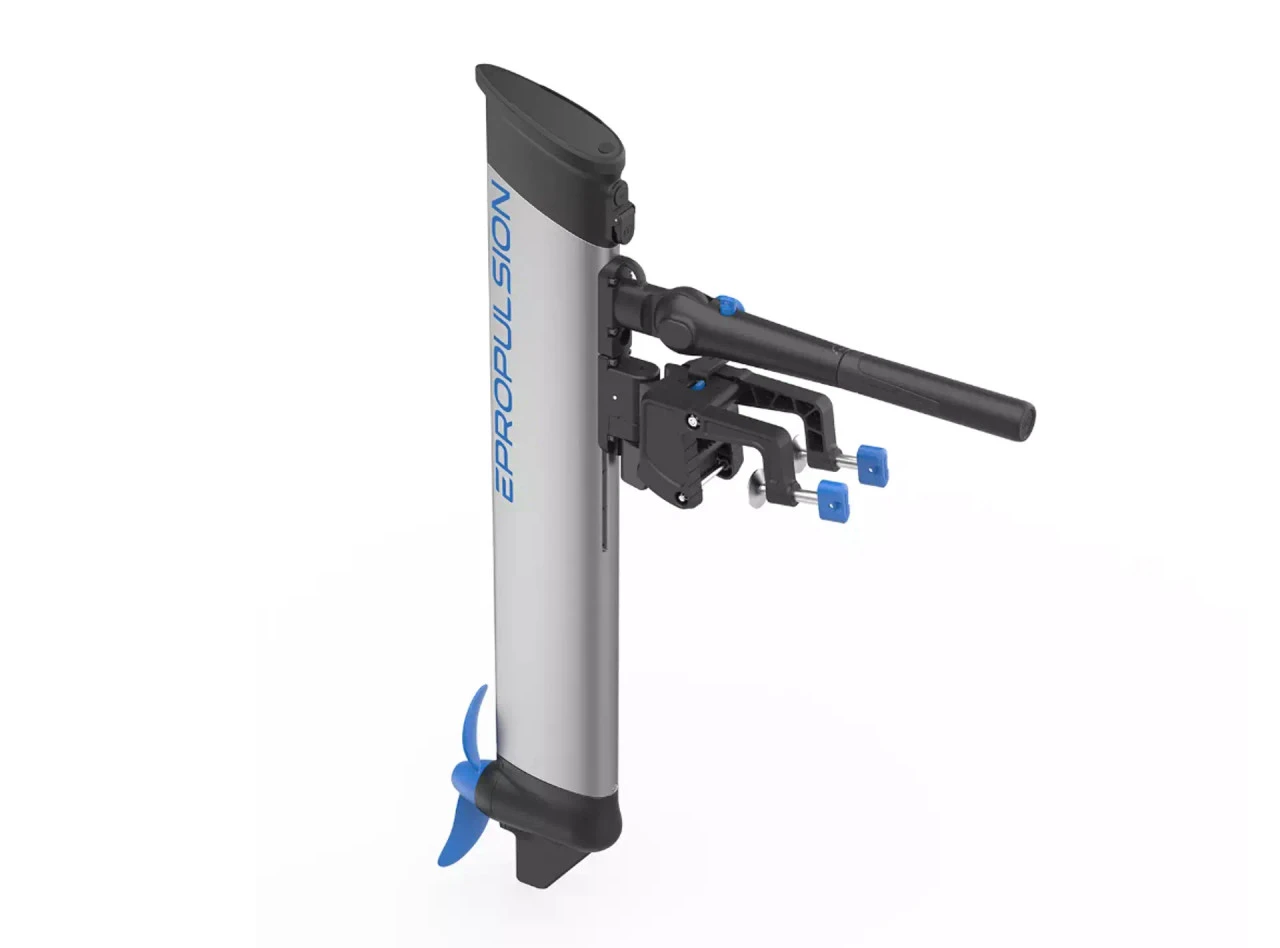

Clamp Bracket Functionality
Kit Contains:
1x Outboard main motor
1x Clamp Bracket
1x 100 to 240V AC charger
1x Outboard Bag
1x Kill switch and wristband
1x Hex Wrench
1x User manual (With warranty card)
1x Quick start guide
Specs
| Nominal Power | 500 W | |
| Maximum Power (in Sport mode) | 750 W | |

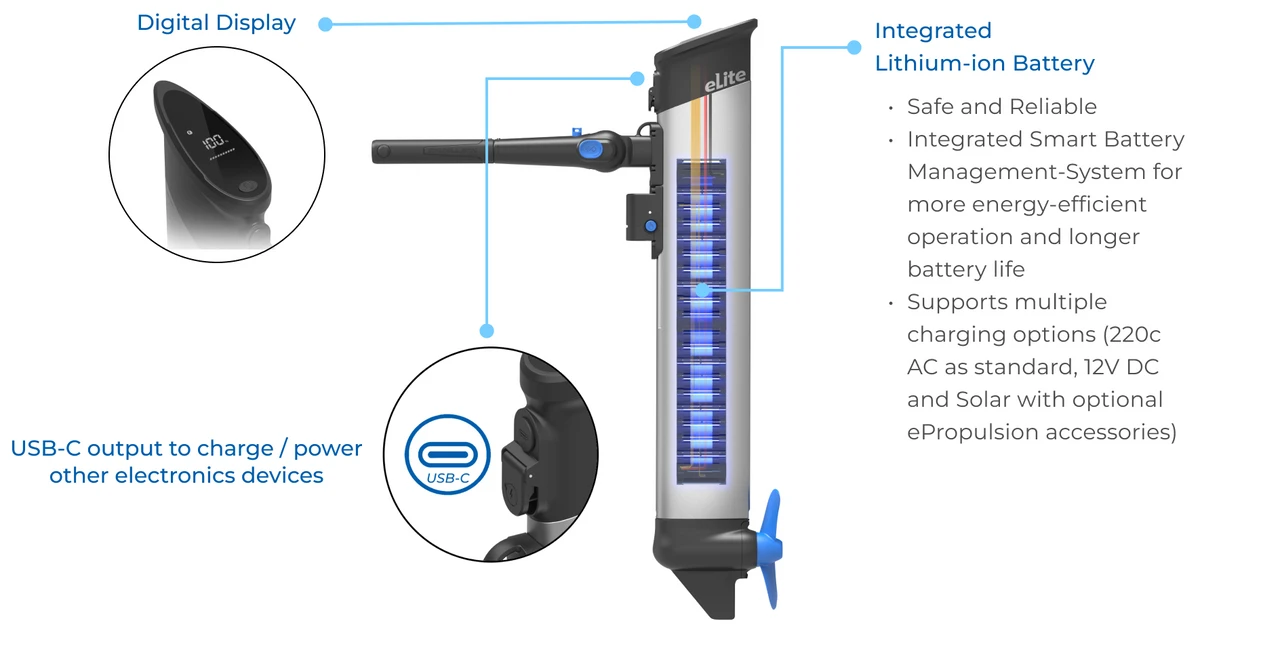

| Battery | Integrated 378 Wh 25.2V Lithium-ion | |
| Battery Life | 800 cycles at 80% DOD | |
| Charger | 100 to 240V AC charger included, 12V charger optional | |
| Cooling System | Natural cooling | |
| Rated RPM | 1500 to 1700 | |
| Operating Temperature | -5 to 55 °C | |
| Storage Temperature | -20 to 45 °C | |
| Trim and Tilt | 8° / 17° / 26° | |
| Tilt Angle | 75° | |
| Shallow Water Mode Tilt Angle | 36° | |
| Steering Angle | ±70° | |
| Dimensions (L x W x H) | 297 x 75 x 890 mm (11.7 x 3 x 35”) | |
| Motor Weight (excluding bracket) | 6.7 kg / 14.7 lbs | |
| Motor Weight (including bracket) | 7.9 kg / 17.4 lbs | |
| Adjustable Shaft Length (Top of Prop to Transom) | 401 / 362.5 / 322 / 282.5 mm (15.8 / 14.27 / 12.7 / 11.1”) | |
